Full Auto Magnetic Strip Module Mounting Machine

Full Auto Magnetic Strip Module Mounting Machine

    Payment Type: L/C,T/T
    Terms of Trade: FOB
    Min. Order: 1 Bag/Bags
    Delivery Time: 35 Days
    Packaging: Wooden Case
    Brand: YUANMINGJIE
    Transportation: Ocean,Land,Air
    Place of Origin: CHINA
    Certificate: ISO, CE
    Port: SHENZHEN

Basic Info

Model No.: YMJ-MSM-1000

Product Description

Full Auto Magnetic Strip Module Mounting Machine is the new generation of strip module mounting machine. It can mount the magnetic strip by two ways, mount on PET/PVC roll overlay or sheet overlay under heating and pressing function. Meanwhile it can collect waste material of magnetic strip module, which helps users reduce material cost. When machine mounts the magnetic strip on roll overlay as below picture, whole system will run automatically.

Detail of Magnetic Strip Module Mounting Machine

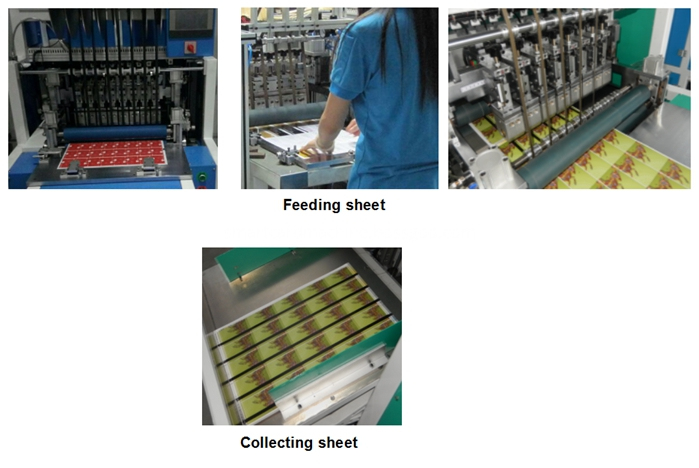

When machine mount the magnetic strip on sheet as below picture, it is feeding sheet by manual.

Detail of Magnetic Strip Module Mounting Machine


Features:

1. Controlled by PLC, touched screen and friendly interface.

2. Feeding material by servo motor, running speed and roll sheet length can be controlled.

3. Multi group roller pressing devices, cylinder pressure can be adjusted, ensure the magnetic strip mount on roll overlay is parallel and orderliness.

4. Roll overlay is cut by cylinder driving; its structure is simple and stable.

5. Waste magnetic strip material collected automatically, it is suit for regular magnetic strip and stripped magnetic strip.

6. Used pneumatic shaft material collecting system to make roll overlay feeding and loading easier operating.

7. Heating temperature control method is heated by heating tube; imported heat detector cooperated with module to control temperature. Device design simple and high accuracy(±0.5℃).

8. Each mounting head can be adjusted temperature and pressure.

9. Used automatic tension control system to feed material, ensure roll overlay feeding smooth and stable.

10. Can finish the process of mounting magnetic strip on roll overlay or sheet.

Technical Parameter:

Overall dimension: L 2200*W 1050*H 1800 mm
Weight: 800 kg
Power supply: AC 380V 50 Hz
Power: 7 KW
Air pressure: 6 kg/cm2 (no water)

Temperature Range:

0-220℃(Can be adjusted)

Temperature Tolerance:

+/- 0.5 ℃

Mounting Accuracy:

0.15 mm

Sheet Cutting Accuracy:

1 mm
Applicable materials:


Sheet size: thickness is 0.25~0.8 mm, max. feeding width is 580 mm;

Roll overlay size: thickness is 0.04~0.2 mm, inner diameter is 3 inch,

outer diameter is less than 20 inch(500 mm), max. width is 580 mm. Weight of roll cannot more than 70 kg.


Operator: 1 person
Output: 2500 chips/h (According to the layout and technology)
Product percent of pass: 99%
